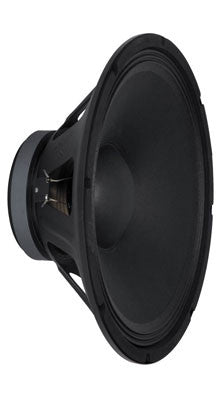

Peavey Pro 15 Low Frequency 15" Speaker Driver

Low frequency driver for the following speaker models:

PR 15, PR 15 Sub, PV 115, PV 215

Features:

• Impedance: 8 Ohms
• Power capacity: 800 W Peak 400 W Program 200 W Continuous
• Sensitivity: 96.4 dB / 1 W 1 m
• Usable freq. range: 40 Hz ~ 3 kHz
• Cone: Kevlar® impregnated cellulose
• Voice coil diameter: 2.5" / 63 mm
• Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener
• Net weight lb. / kg: 10.4 lbs. / 4.7 kg
• Znom (ohms) 8
• Revc (ohms) 6.00
• Sd (Square Meters) 0.086
• BL (T/M) 13.35
• Fo (Hz) 34.4
• Vas (liters) 331.6
• Cms (uM/N) 324.6
• Mms (gm) 66.50
• Qms 3.58
• Qes 0.482
• Qts 0.425
• Xmax (mm) 2.5
• Le (mH) 0.74
• SPL (1W 1m) 96.4
• No (%) 2.40%
• Vd (cu. in. / ml) 26.1 / 428
• Pmax (Watts pgm.) 400
• Disp (cu. in. / ml) 131 / 2154
• 15"
