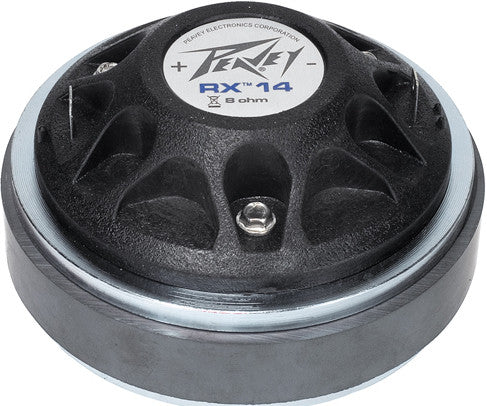

Peavey RX14 Replacement High Frequency Driver

Replacement high frequency driver for the following speakers:

PR 10, PR 10P, PR 12P, PR 15P, PV 115, PV 215

Features:

  • 1.4"
  • Throat Parameter: .938" / 23.8 mm
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 7.1 Ohms
  • DC Resistance: 6.8 Ohms
  • Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous
  • Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
  • Nominal Efficiency: 30%
  • Frequency Response: 1.5 kHz to 20 kHz
  • Recommended Crossover: 1,800 Hz at 12 dB / Octave
  • Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
  • Diaphragm: Commercially pure titanium
  • Voice Coil Diameter: 1.4" / 34.4 mm
  • Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
  • Flux Density: 11,500 gauss (1.15T)
  • Dimensions: 3.54" (90 mm) diameterx 2.40" (61 mm) depth
  • Horn Coupling Diameter: .938" (23.8 mm)
  • Horn Coupling Threads: Standard 1 3/8" / 18"
  • Voice Coil Cooling: Ferrofluid
