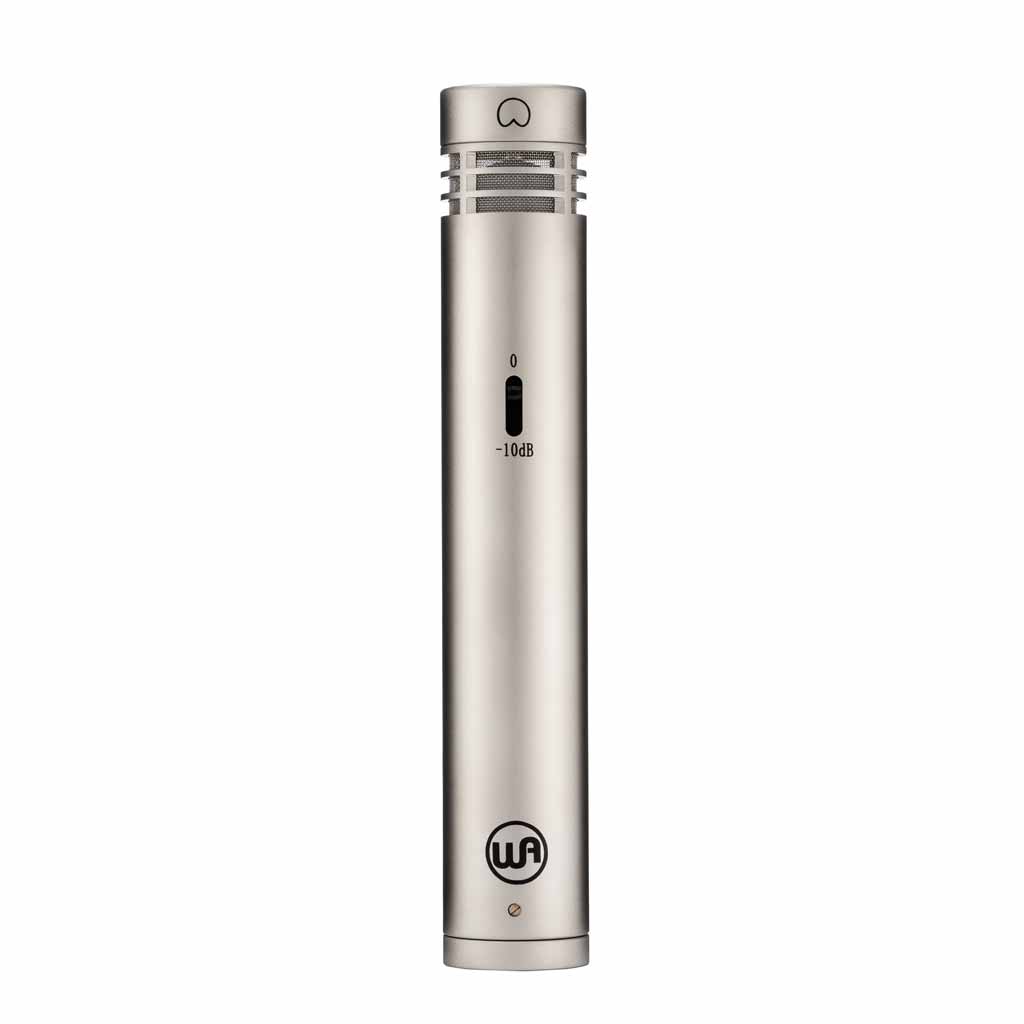

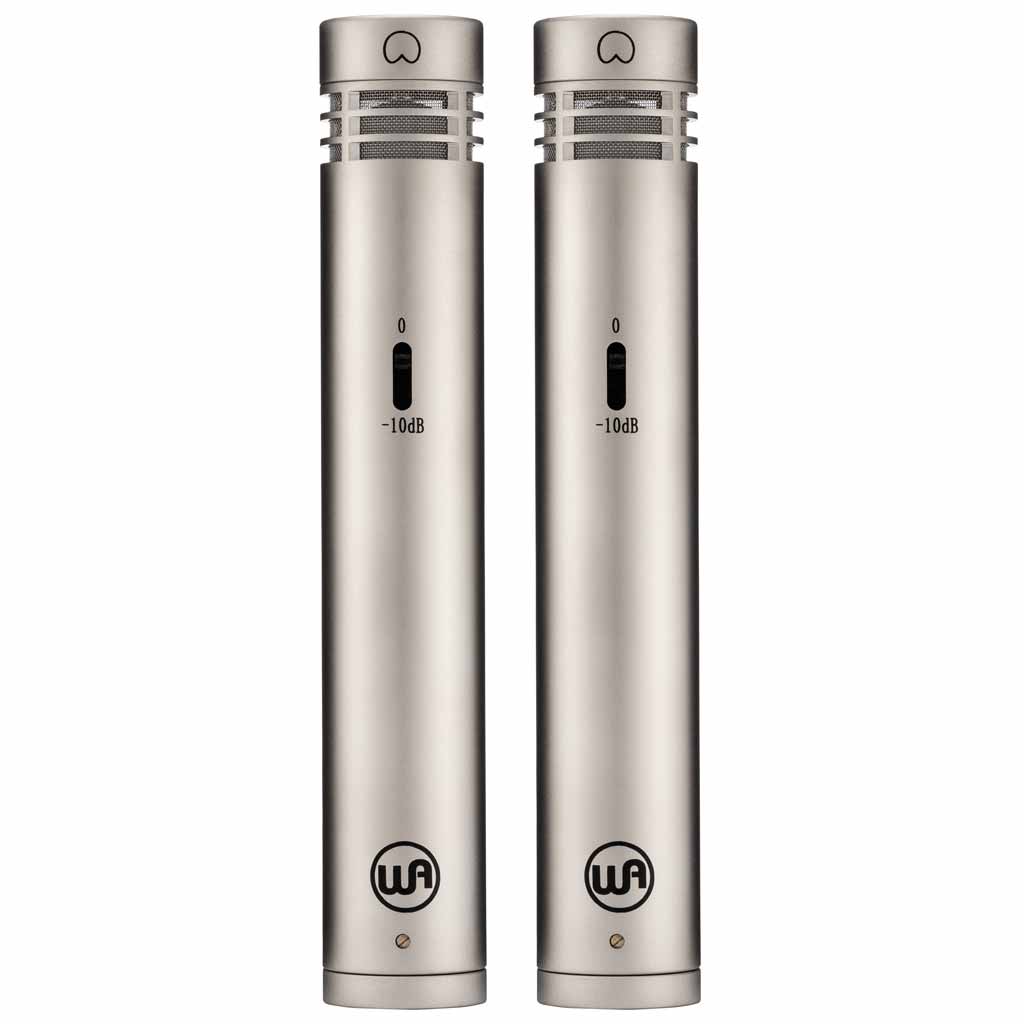

Warm Audio WA-84 Small Diaphragm Condenser Microphone Stereo Pair

Sound Like A Legend

The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry.  The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer,  polystyrene and Wima capacitors and a Fairchild FET.  The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.

Large Sound, Small Size

The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources.  Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process.  When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound.

SPECS:

  • CineMag USA Transformer
  • Directional Pattern: Cardioid
  • Fully discrete vintage signal path
  • Vintage capsule reproduction
  • 48V Phantom Powered
  • Frequency Range: 20HZ - 20KHZ
  • Sensitivity: -39dB or 11MV/PA @ 1kHz
  • Output Impedance: 200Ω
  • Rated Load Impedance: ≥1KΩ
  • Pad: 0dB or -10dB
  • Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
  • S/N Ratio: 78 dBA (IEC651)
  • Dynamic Range: 107 dBA (IEC651)
  • Connector: 3-Pin Gold-Plated XLR
  • Weight: 122 g each

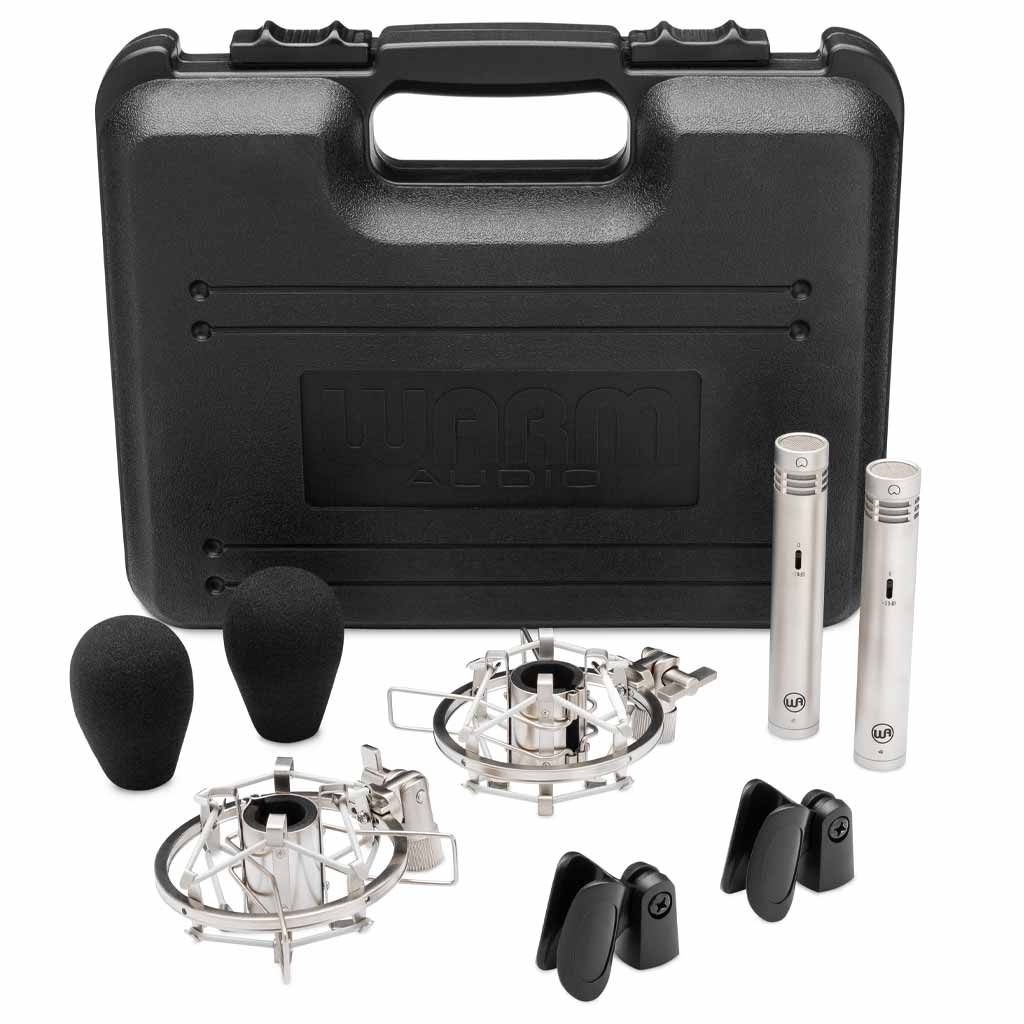

  • Includes: Microphones, Cardioid Capsule, Shock Mount, Mic Clip, Wind Screen, and Carrying Case
