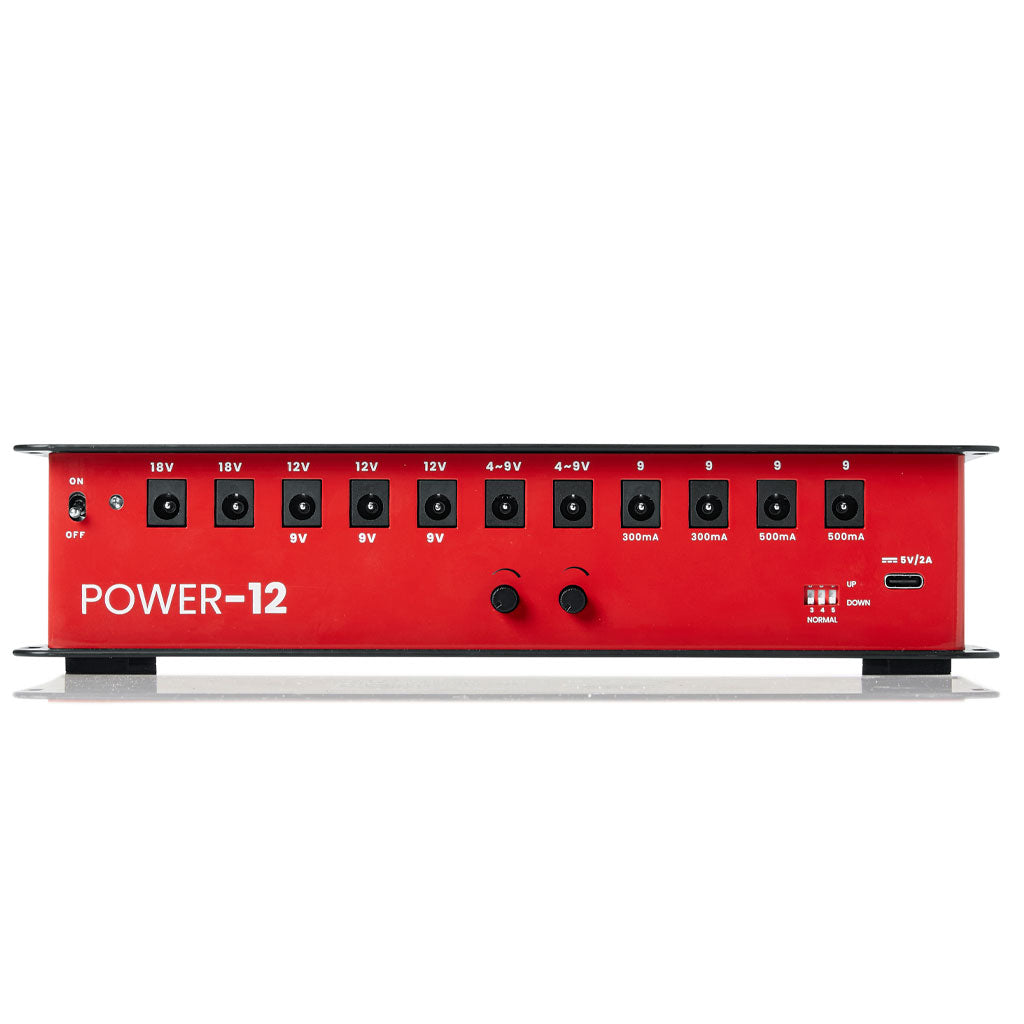

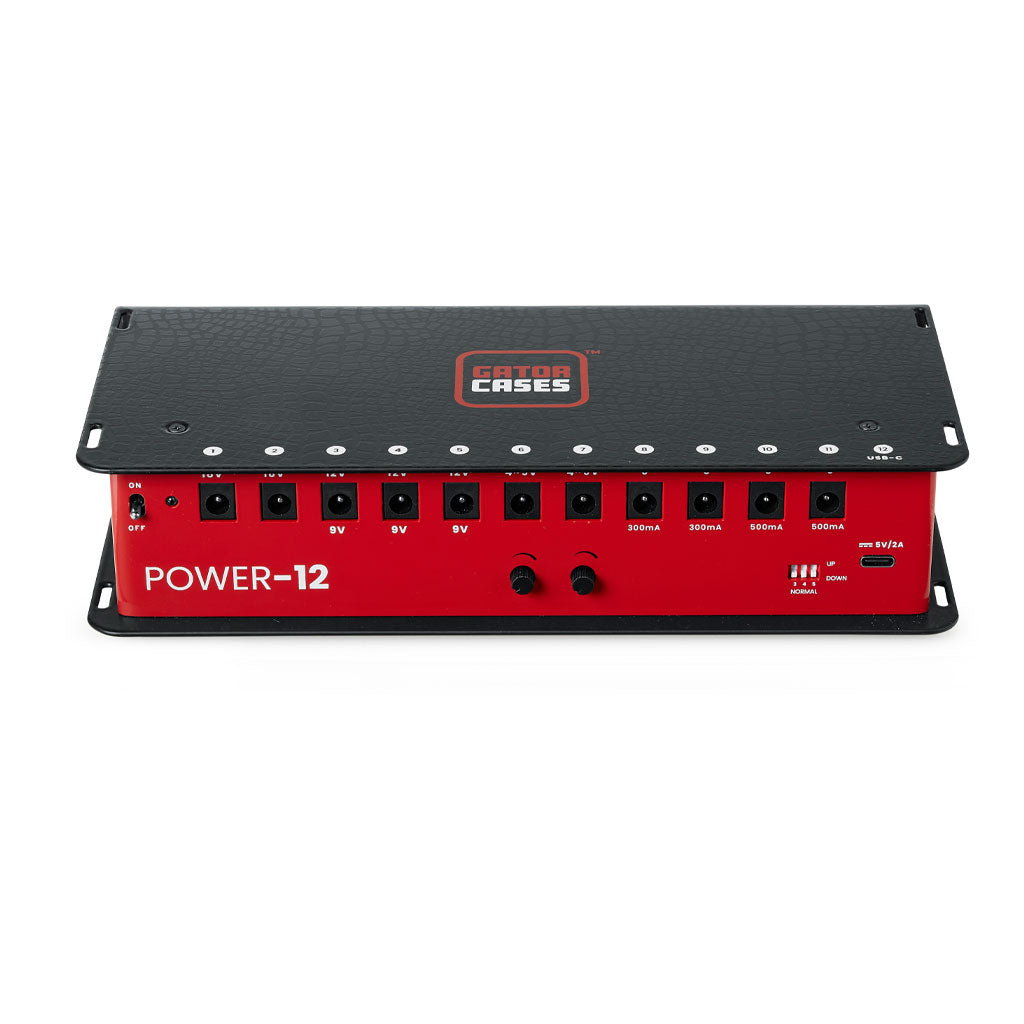

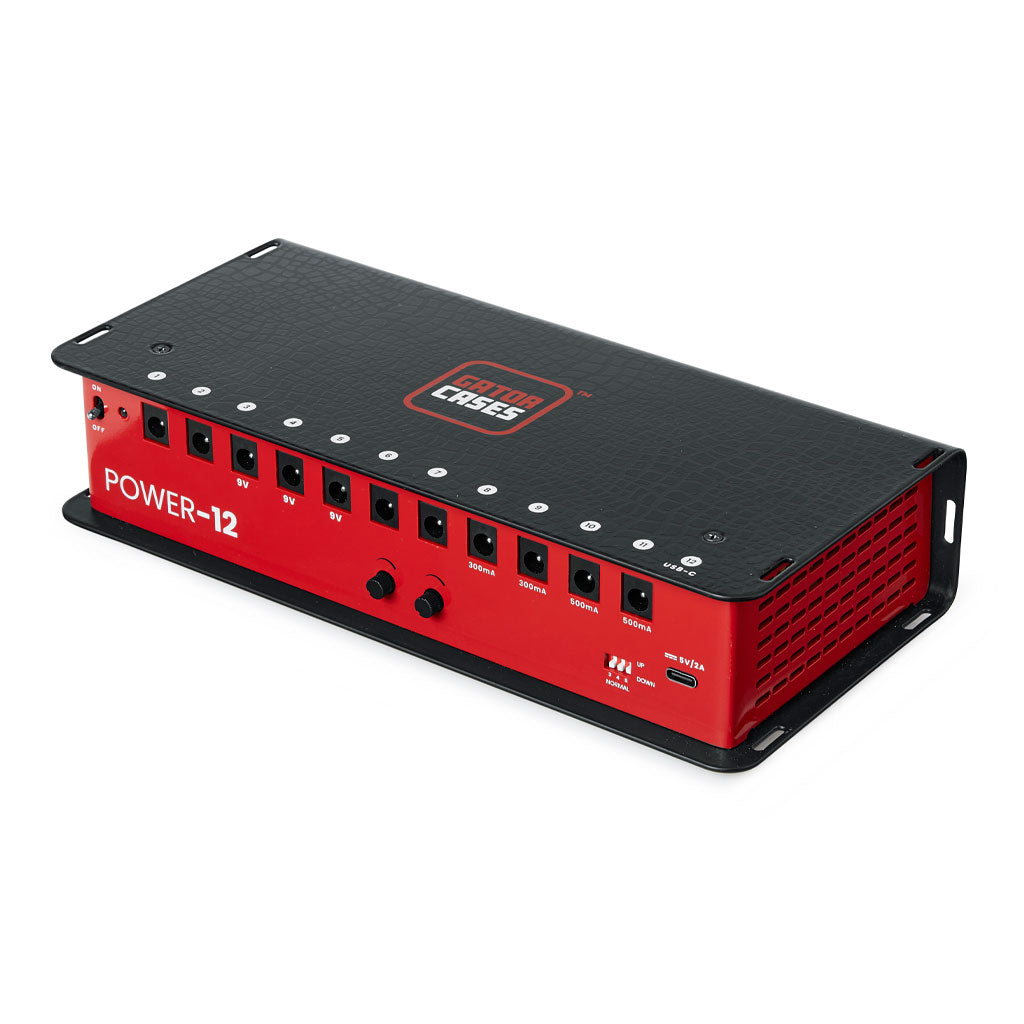

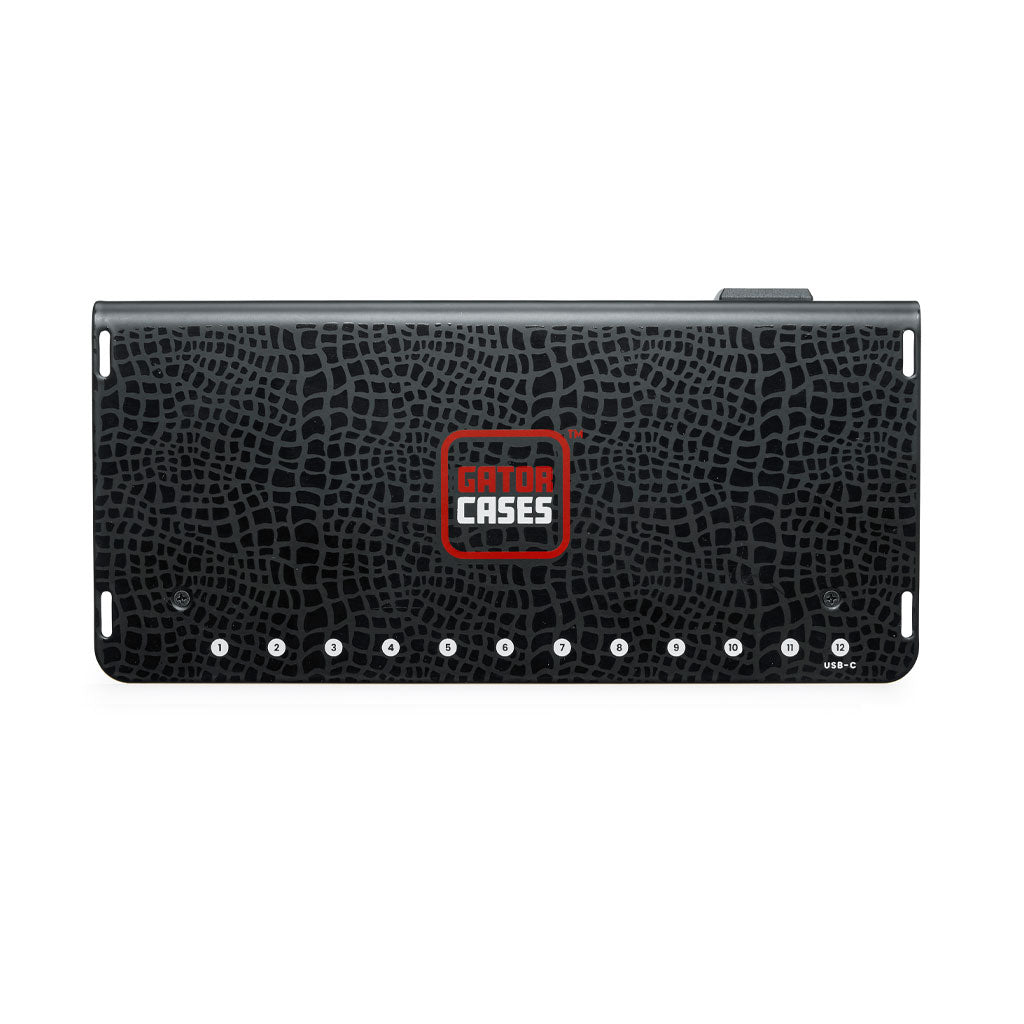

Gator GTR-PWR-12 Pedalboard Power Supply with 12 Isolated Outputs

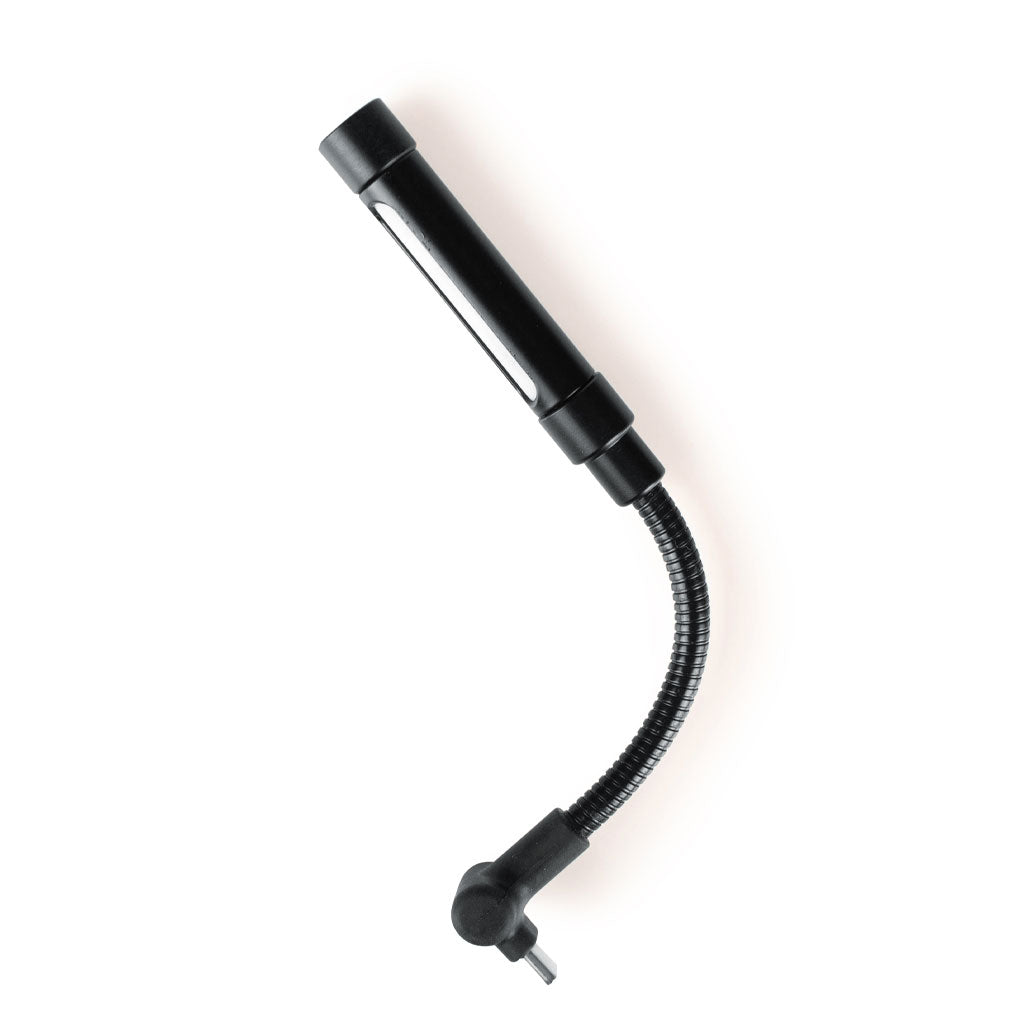

Everyone knows the hardest part of building a pedal board is trying to figure out power for all your pedals. Gator has set out to try and solve this plaguing problem with the GTR-PWR series. The GTR-PWR-12 offers the user 12 individual, isolated inputs for all their pedal needs, including a USB-C output for the include gooseneck light to illuminate your pedalboard for those dark stage performances.

Dimensions: 9.88" x 4.5" x 2"

Weight: 3.8 lbs

Features:

• 12 Individual, Isolated Outputs
• Maximum Output Current: 2300 mA
• AC Power Input with Switchable Voltage Between 115/240V (50-60 Hz) for International Use
• Continuously Variable Voltage (4V~9V0 on Two (2) Outputs to Simulate Low Battery Effects

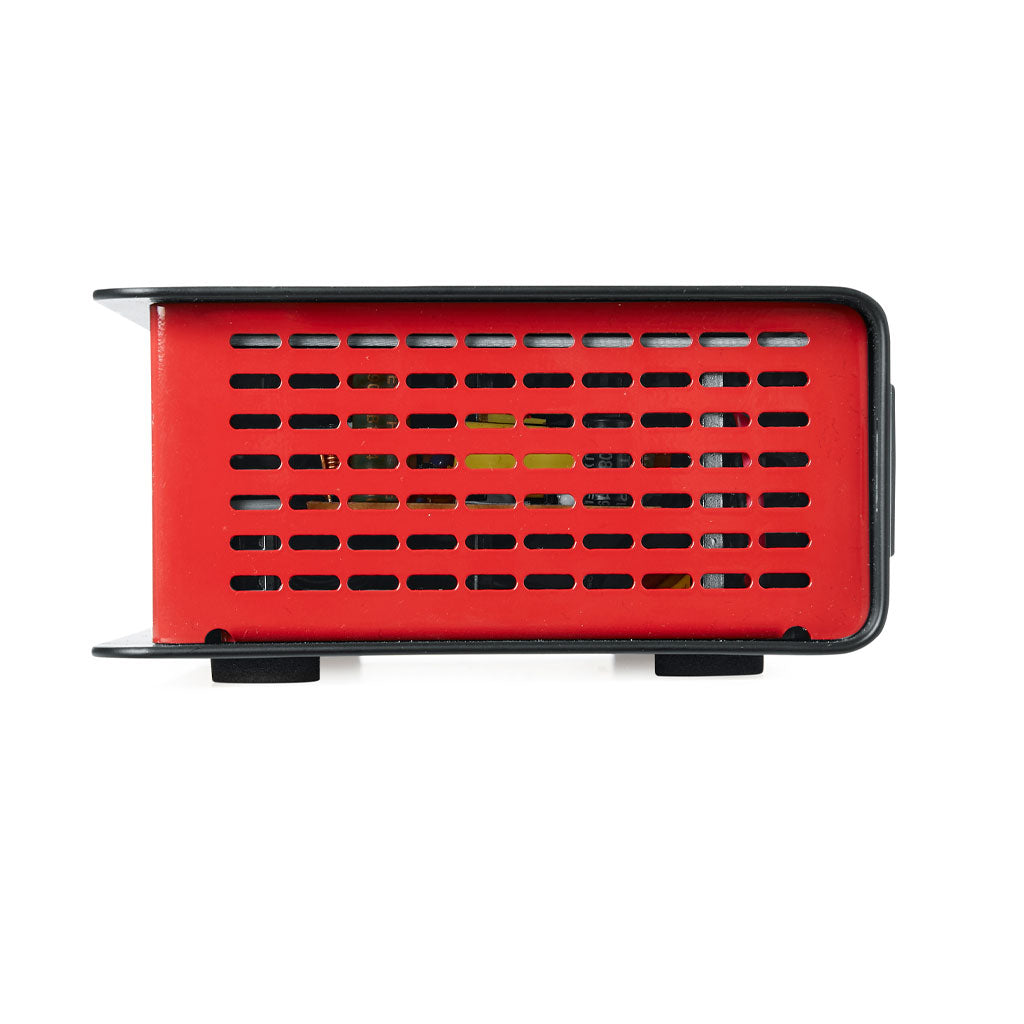

• Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation
• AC Outlet on Rear Side & Integrated Slots Allow for Direct Mounting to Pedalboard
• On/Off Power Switch with LED Indicator Light
• Voltage Adjustable on Outputs 3, 4 & 5 via DIP Switches
• Outputs:
• 2x 18V DC @ 120 mA
• 3x 9/12V DC @ 120 mA
• 2x 4~9V DC @ 120 mA
• 2x 9V DC @ 300 mA
• 2x 9V DC @ 500 mA
• 1x USB-C @ 5V/2A (10W)
• 1x AC Outlet
• Included
• Power Cable
• 12x DC Power Cables
• 9V Battery Clip Cable
• Mini Jack Cable
• USB-C Male to Female USB-A Adapter Cable
• Current Doubler Cable
• Polarity Inverter Cable
