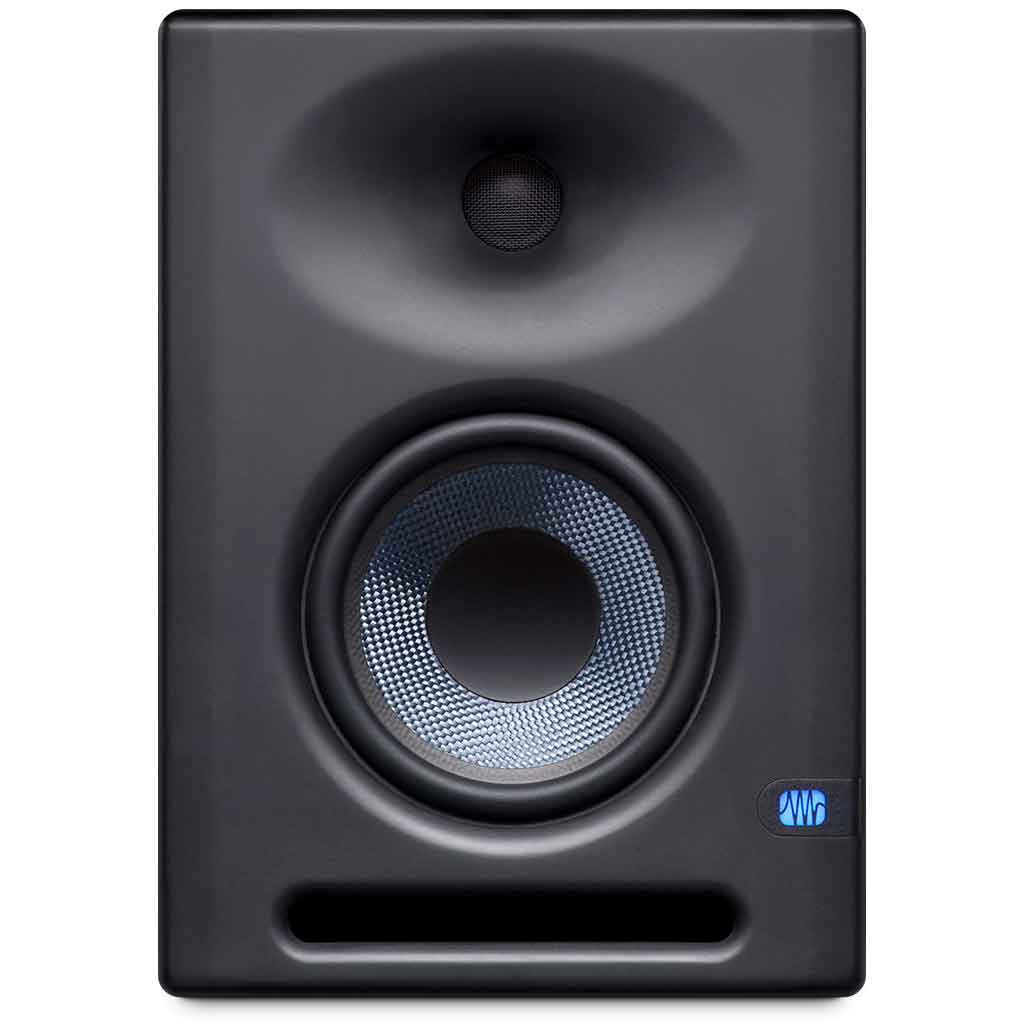

PreSonus Eris E5 XT 2-Way Active Studio Monitor

With their smooth, accurate frequency response; powerful amplification with tons of headroom; and acoustic tuning functions that ensure you always get the best sound... it's no wonder that the original Eris^®-series studio monitors have been a runaway hit since their introduction. The Eris E5 XT is a substantial update to a lauded classic. Deeper lows and a wider, more controlled sweet spot (thanks to its new EBM wave guide design) mean that our best-selling studio monitors just got even better.

We outfitted the Eris XT studio monitors with a new EBM (Elliptical Boundary Modeled) wave guide designed by none other than Hugh Sarvis of WorxAudio, the mind behind our award-winning CDL loudspeakers and lauded R-Series monitors. The result? A superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. It’s ideal for group listening and collaboration—while narrow vertical dispersion reduces reflections from your desk. Silk-dome tweeters ensure snappy, accurate transient reproduction.

Components and construction

• 5.25-inch woven composite low-frequency transducer
• 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
• Front-firing acoustic port for superior bass-frequency reproduction
• Optimized, resonance-suppressing internal bracing
• 102 dB maximum continuous SPL

User controls

• HF Adjust (±6 dB, continuously variable)
• Midrange Adjust (±6 dB, continuously variable)
• Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
• Highpass filter (Off, 80 Hz, 100 Hz)

Power and safety

• 70 watt, Class AB biamplification
• RF interference, output current limiting, over-temperature, transient, and subsonic protection
• Amplifier “soft start” feature eliminates popping on power-up
• Internal power supply with IEC connector
• Power switch with on/off LED

Inputs and outputs

• Balanced XLR/¼-inch
• Unbalanced RCA inputs
