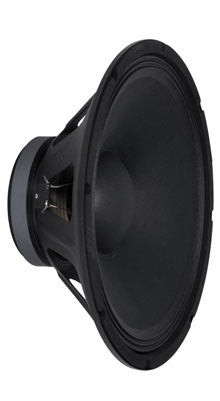

Peavey PRO 12 Low Frequency 12" Speaker Driver

Replacement speaker for the following speakers:

PR12

Features:

  • Impedance: 8 Ohms
  • Power capacity: 800 W Peak 400 W Program 200 W Continuous
  • Sensitivity: 94.3 dB / 1 W 1 m
  • Usable freq. range: 50 Hz ~ 4 kHz
  • Cone: Kevlar® impregnated cellulose
  • Voice coil diameter: 2.375" / 60.3 mm
  • Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener
  • Net weight lb. / kg: 9.7 lbs. / 4.4 kg
  • Znom (ohms) 8
  • Revc (ohms) 6.00
  • Sd (Square Meters) 0.053
  • BL (T/M) 12.36
  • Fo (Hz) 48.4
  • Vas (liters) 86.4
  • Cms (uM/N) 219.7
  • Mms (gm) 49.10
  • Qms 3.84
  • Qes 0.588
  • Qts 0.510
  • Xmax (mm) 2.5
  • Le (mH) 0.72
  • SPL (1W 1m) 94.3
  • No (%) 1.73%
  • Vd (cu. in. / ml) 16.2 / 266
  • Pmax (Watts pgm.) 400
  • Disp (cu. in. / ml) 73 / 1192
  • 12"
