$319.95

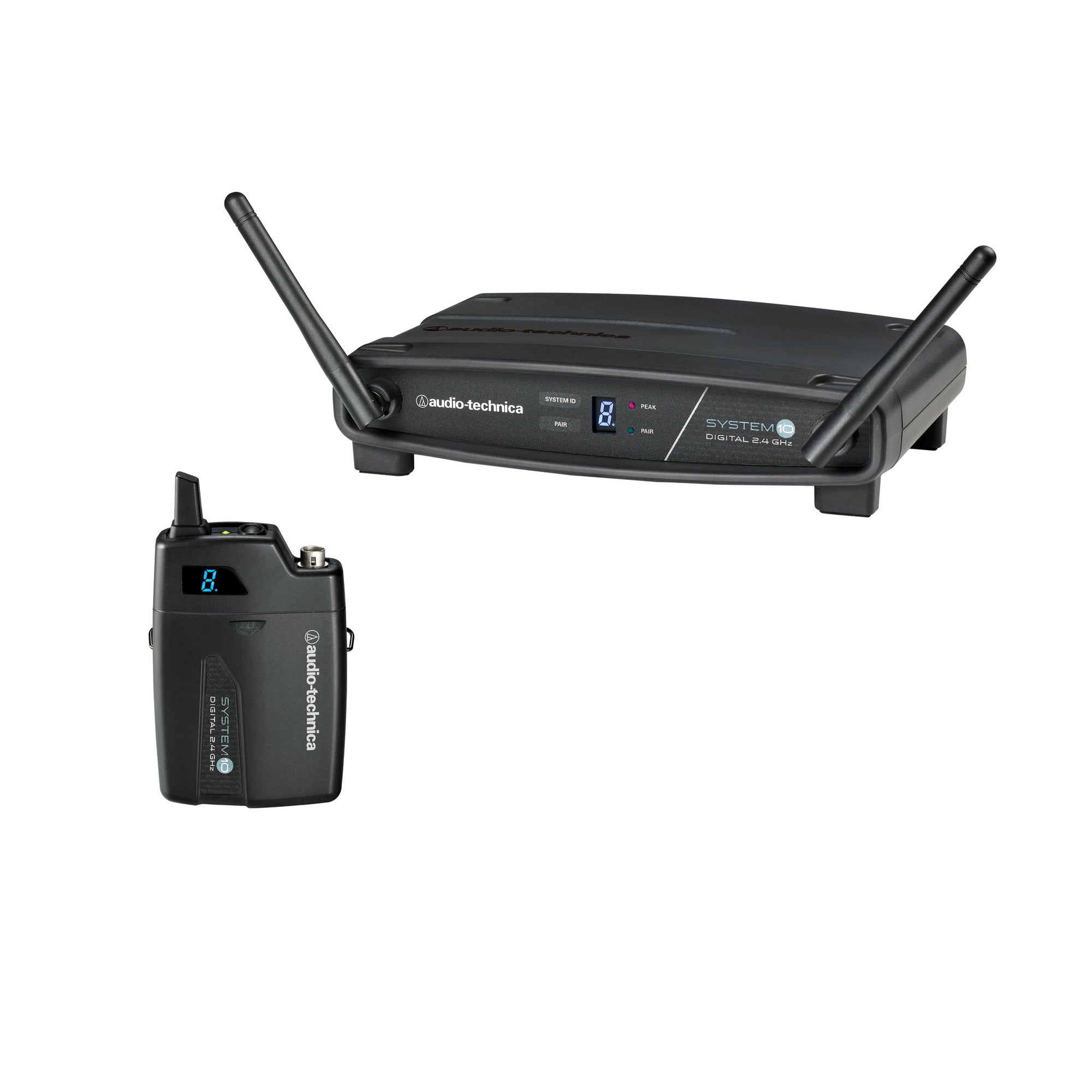

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space.Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication.Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally,Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
Featuring stackable, contemporary styling, this System 10 includes the UniPak® body-pack transmitter designed for use with lavalier, headworn and instrument microphones as well as electric guitars. This system configuration includes the ATW-R1100 receiver and body-pack transmitter The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.
| OVERALL SYSTEM SPECIFICATIONS | |
|---|---|
| Operating Frequencies | 2.4 GHz ISM band |
| Dynamic Range | >109 dB (A-weighted), typical |
| Total Harmonic Distortion | <0.05% typical |
| Operating Range | 30 m (100') typical Open range environment with no interfering signals |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures |
| Frequency Response | 20 Hz to 20 kHz Depending on microphone type |
| RECEIVER SPECIFICATIONS | |
|---|---|
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Dimensions | 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
| Net Weight | 290 grams (10.2 oz) |
| Accessory Included | Power supply |
| BODY-PACK TRANSMITTER SPECIFICATIONS | |
|---|---|
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Input Connections | Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Batteries | Two 1.5V AA not included |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Net Weight | 100 grams (3.5 oz) without batteries |
